Original Mini Ecofan
HEAT POWERED STOVE FAN
MODEL 815
815CAXBX black
OPERATING INSTRUCTIONS
Ecofan® Operating Instructions
The Ecofan is designed to be used on freestanding wood stoves with normal surface temperatures of 110°C – 325°C (230°F-617°F). Temperatures above 325°C (617°F) may damage your Ecofan. Relocate your Ecofan to a cooler spot on your stove if the surface temperature exceeds 325°C (617°F). Good wood stove safety practice includes using a stove thermometer.
Safety
While in use, the base of the Ecofan is very hot. DO NOT TOUCH! When repositioning your Ecofan always use gloves or the handle.
Getting the Most From Your Ecofan®

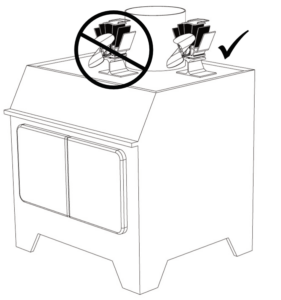

For optimum performance, placement on the stove’s surface is critical. Be sure to position the Ecofan on the stove top so that cool air will be drawn over the cooling fins. The Ecofan should not be used directly in front of the stove pipe or at the front of the stove.
NOTE: Overheating will reduce the Ecofan’s effectiveness and may damage the thermoelectric module and void the warranty. Remove the Ecofan from stove if temperature exceeds 325°C (617°F).
Motor Replacement Kits
The Ecofan motor is designed for several seasons of use under normal operating conditions. If your fan spins much slower or the blade requires a push to start, a simple motor replacement may be the solution.
Specifications
Model | 815 MINI ORIGINAL | 800
ORIGINAL |
810
UltrAir |
812
AirMax |
Airflow | 85 CFM | 100 CFM | 125 CFM | 175 CFM |
Fuel Savings | 10% | 12% | 14% | 18% |
Feel the Heat Faster** | 17% | 20% | 31% | 38% |
Blade Size | 160mm (6.3”) | 206mm (8”) | 206mm (8”) | 232mm (9”) |
* Results projected by CFD simulations and sample testing.
** Time taken to reach 20°C (68°F) from a cold start of 17°C (63°F) in a standard test environment.
For further information or answers to Frequently Asked Questions
please visit www.ecofan.com
Limited Warranty
This Product has a 2 year limited warranty.
Limited Warranty
The product you have purchased has been guaranteed by the manufacturer for the warranty period stated starting on the date of purchase against defects in workmanship and/or materials. This guarantee does not apply if the damage occurs because of the accident, improper handling or operation, shipping damage, abuse, misuse, or unauthorized repairs made or attempted. Only parts that prove to be defective during the period of guarantee will be replaced without change.
Note: Products returned from outside Canada must be shipped via regular mail due to customs regulations. Shipments via courier services cannot be accepted.
To register online please visit www.caframo.com/warranty
