747 Ultimate 12V/24V Waste/Recycle

747 Ultimate 12V/24V Waste/Recycle

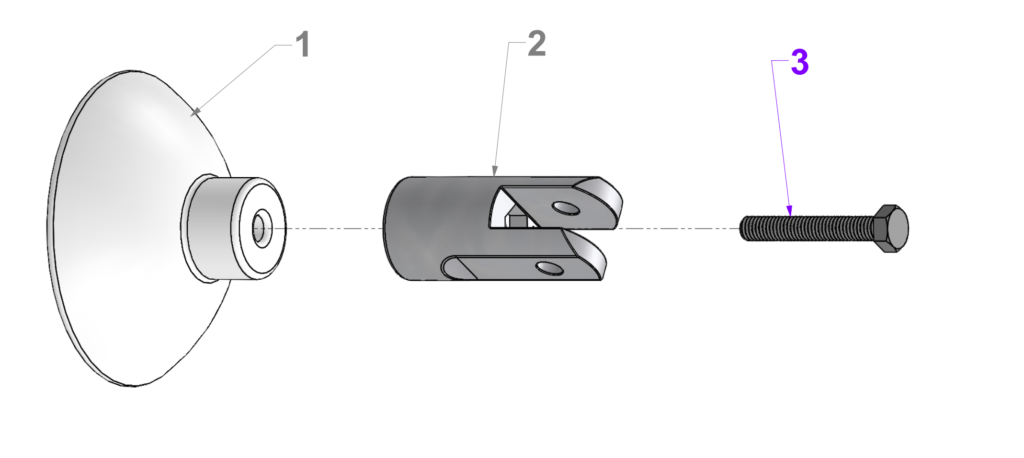

  1. Suction cup (PVC plastic)
  2. Suction cup post (ABS plastic)
  3. Hex bolt (stainless steel)

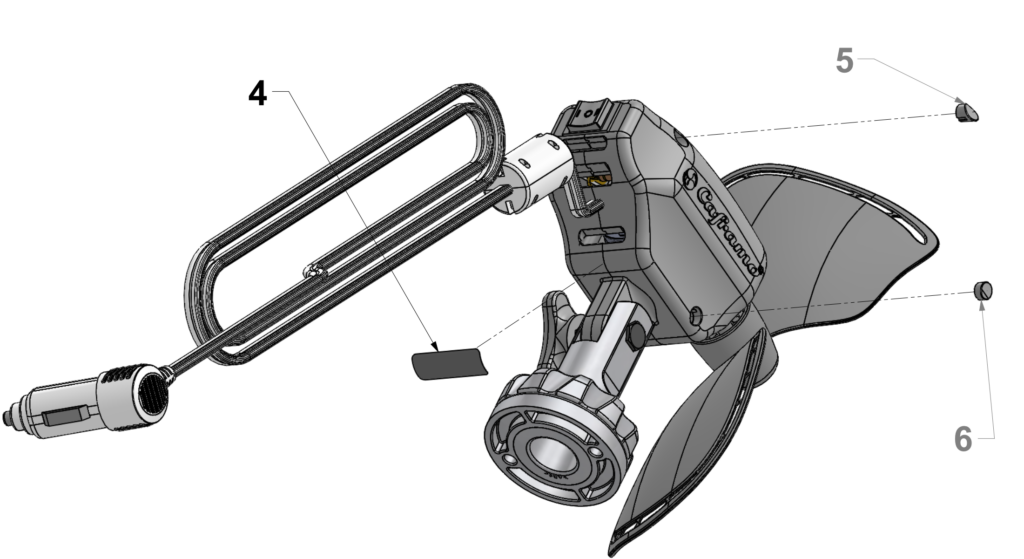

  1. Remove serial label from housing
  2. Top screw cover (ABS plastic)
  3. Bottom screw cover (ABS plastic)

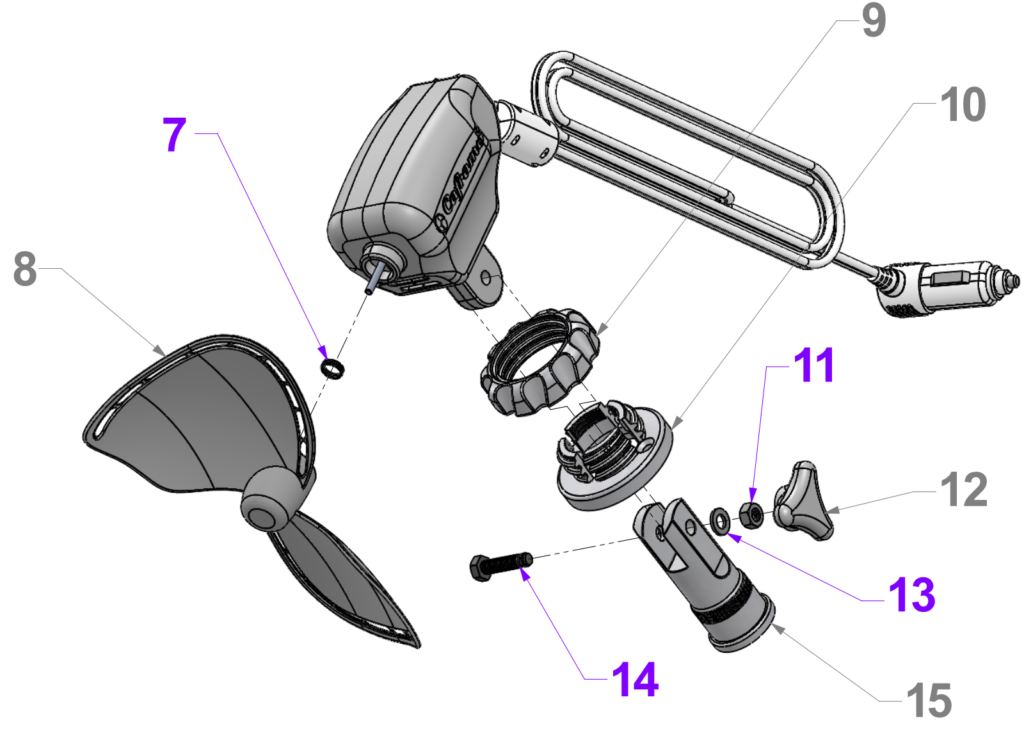

  1. Spring (stainless steel)
  2. Blade (LDPE plastic)
  3. Base nut (ABS plastic)
  4. Base flange (ABS plastic)
  5. Pivot nut (stainless steel)
  6. Pivot nut cover knob (ABS plastic)
  7. Pivot washer (stainless steel)
  8. Hex bolt (stainless steel)
  9. Spline post (ABS plastic)

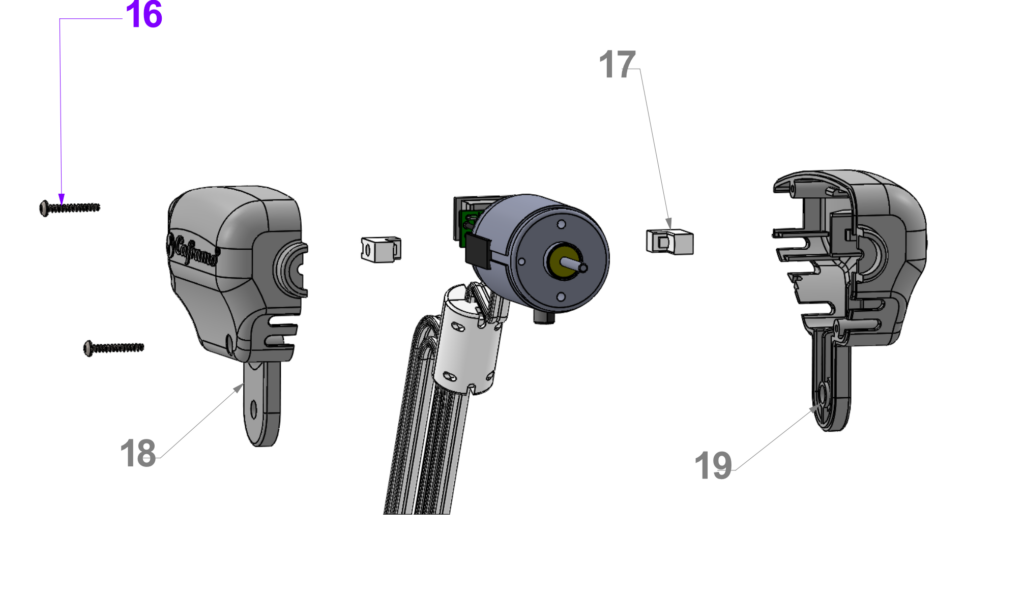

  1. Thread rolling screw (stainless steel)
  2. Motor Key, 24V version only (ABS plastic)
  3. Left housing (ABS plastic)
  4. Right housing (ABS plastic)

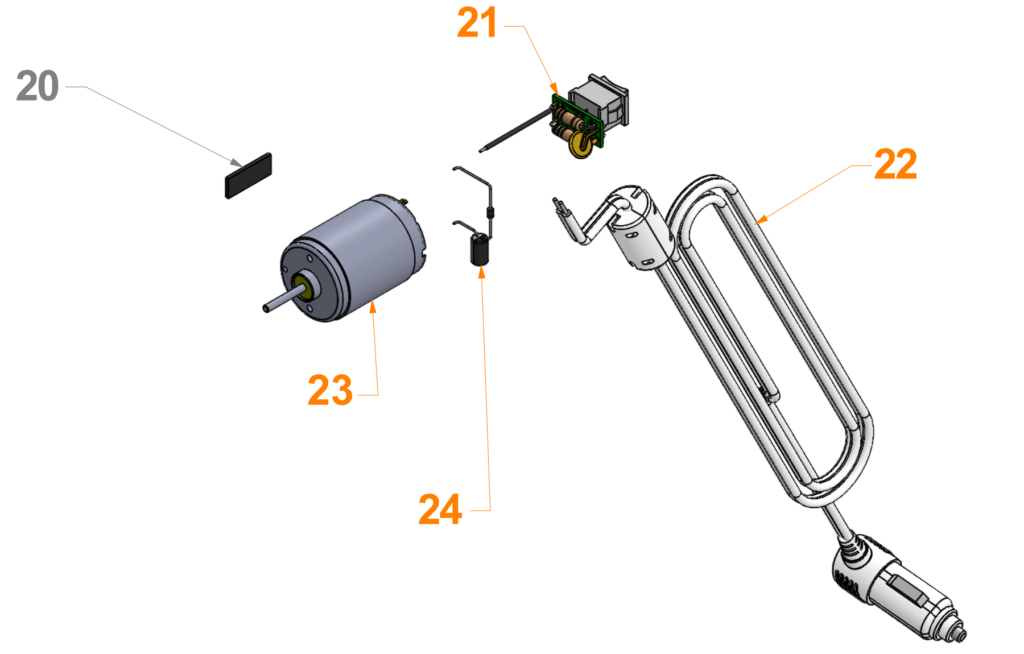

  1. Spacer (foam)
  2. Switch contorl PCB (e-waste)
  3. Power cord (e-waste)
  4. Motor (e-waste)
  5. Capacitor assembly (e-waste)
